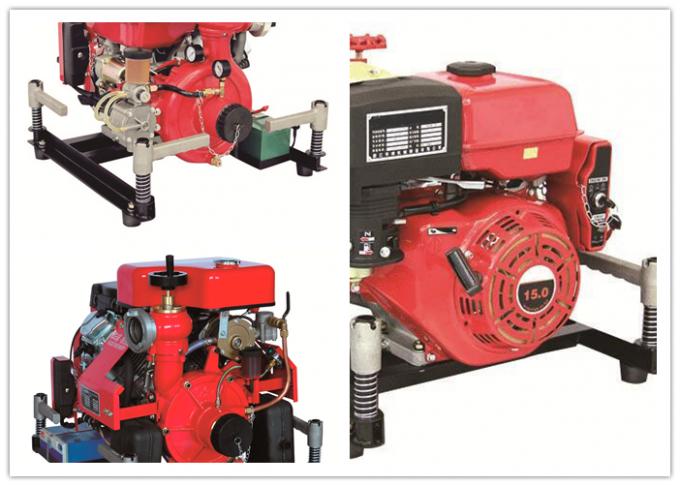

Threaded Type Special Vehicles Diesel Engine Fire Pump 570 ?? 510 ?? 560mm
Threaded Type Special Vehicles Diesel Engine Fire Pump 570 ?? 510 ?? 560mm - Image 2

Threaded Type Special Vehicles Diesel Engine Fire Pump 570 ?? 510 ?? 560mm

Product Details:

  • Dimension
    570??510??560mm
  • Net Weight
    ??65kg
  • Highest Lift
    75m
  • Rated Pressure
    0.55Mpa
  • Cylinders
    Double Cylinder
  • Water Pump
    Single Stage
  • Flow Rated
    750L/min
  • Suction Depth
    7m
  • Place of Origin
    China
  • Brand Name
    Jindun
  • Certification
    ISO
  • Model Number
    JBQ5.5/12.5-L
  • Minimum Order Quantity
    1
  • Price
    USD
  • Delivery Time
    3months
  • Payment Terms
    T/T
  • Supply Ability
    300/year
SKU: M2642 Category:

Connection method threaded type Middle pressure middle flow Portable fire pump 570×510×560mm Dimension

Dimension570×510×560mm
Weight≤65kg
Rated flow rate750L/min
lift75m
Rated pressure0.55Mpa
Inlet pipe diameterφ65mm
Outlet pipe diameterφ65mm
Water gun nozzle diameterφ19mm
Connection methodThreaded type
Maximum suction depth7m
Water diversion time≤15s
Startup modeHand/electric start
Engine type15HP,LF190FD
Water pumpSingle stage
