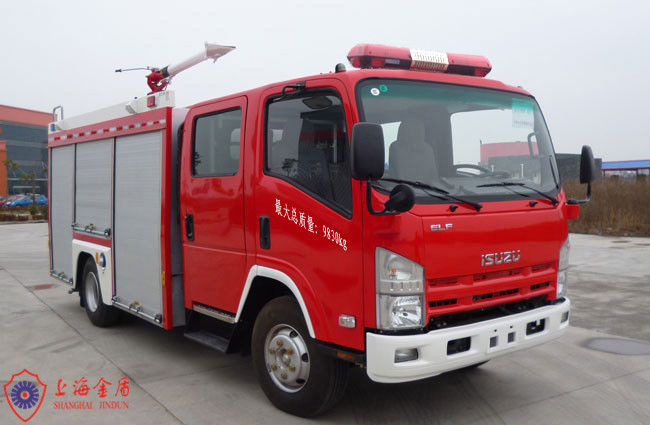

JDX5100GXFPM35/B foam fire truck adopts QL11009KARY ISUZU chassis, USA HALE AP32 fire pump, USA AKRON 3430 fire monitor and other fire-fighting equipment. The foam tender fire vehicle has the features of a good structure and reasonable layout, easy operation and maintenance. It is usually used by public security fire brigades in large and medium cities, petrochemical companies and airports and other professional fire brigade
Main performance parameters for foam fire truck
1. The whole vehicle
| Dimensions (mm) | 6870X2240X3040 |
| Full load permissible weight (kg) | 10000 |
| Vehicle total weight (kg) | 6125 |
| Fire-extinguishing agents | water + Foam: 3500kg |
| Number of passengers (incl. driver) | 5 |
| Max. Power (kw/hp) | 139kw/189hp |
2. Шасси
| Name | ISUZU chassis |
| Модель | QL11009KARY |
| Тип привода | 4×2 |
| Кабина | double cabin (1 + 1 + 3), the rear seat backrests fit with three fixtures for putting Self Contained Breathing Apparatus. |
| Колесная база | 3815mm |
| Chassis weight | 2970Kg |
| Max. permissible load | 7030Kg |
| Maximum speed | 110Km/h |
| Мин. диаметр поворота | ??15.2m |
| Двигатель | Inline four-cylinder, water-cooled, electronically controlled two-stage, high-pressure common-rail, turbocharged, intercooled, diesel engine electronic control |
| Type | 4HK1-TCG40 |
| Макс. мощность | 139Kw/ 2600r/min |
| Макс. крутящий момент | 510N.M/1600rpm |
| Emission standard | China ?? |
| Сцепление | Single, dry, diaphragm spring, oil and gas booster |
| Коробка передач | MLD-6Q |
3. Extinguishing system
- Water inlet: A Φ100mm suction connection, at the rear of vehicle body. An inlet with Φ100mm manual butterfly connects with the water tank.
- Water injection: a Φ80mm tank water injection inlet at each side of vehicle body.
- A pump with a DN40 manual ball valve behind the tank connects with water tank injection inlet.
- Water outlet: A outlet with Φ80mm ball valve on each side of pump station. And a DN80 cannon pipe
- Residual water drainage pipeline: To protect the pump and each ball valve, mounted with residual water drainage valve.
- Cooling water pipeline: to protect normal operation of the PTO, the pipeline is mounted with additional cooling devices.
.
Часто задаваемые вопросы
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. В: Какой у вас способ оплаты?
О: Предпочтительные способы - T/T и L/C.
4. В: Вы организуете доставку автомобилей?
О: Да, мы можем организовать доставку в зависимости от условий торговли.
5. В: Как упакованы товары?
О: Вся упаковка соответствует стандартам экспорта.
Если у вас есть другие вопросы, пожалуйста, не стесняйтесь обращаться к нам.
