Vehicle
| Dimension (L×W×H) | 6705×2200×3210mm |
| Gross weight | 8150kg |
| Complete vehicle shipping mass | 3925kg |
| Electric generator rated power | 50kw |
| Seat (inc. driver) | 3 |
| Rated power | 139kw |

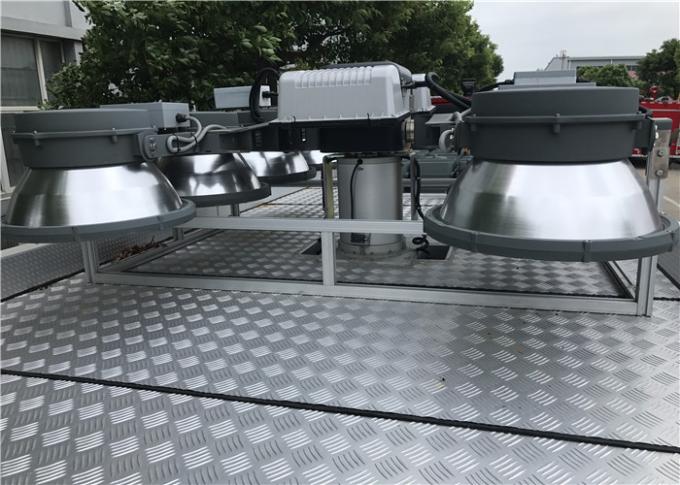

Main lighting system
50kw electric generator, 2x8kw main lamp, pneumatic lifting poker, holder, controller, air compressor, power distribution system, auxiliary lighting.
| Electric generator model | ZD50TFY/4 |
| Rated power | 50 kw |
| Rated current | 72.2A |
| Rated speed | 1500 r/min |
| Poles | 4 |
| Rated line voltage | 400VAC |
| Rated phase voltage | 230VAC |
| Frequency | 50Hz |
FAQ
| 1, Q: Why should we choose you ? |
| A: We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting. |
| B: We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur |
| C: We have our own R&D team, production workshop, QC management team, international marketing team and after service team. |
| D: We will provide the most professional and the best service on every business discussion and operation procedure. |
| E: We can provide special design for different specification requirement according to different orders or tender documents. |
| G: We have jointed ventures with Morita for 4 years, so the technology, design and quality are same with Morita. |
| H: We have collaboration with various top enterprises of fire protection sector, Such as Darley, Rosenbauer, HALE, AKRON, Ekhart, etc. |
| I: Our Certifications: ISO, TUV, CCCF, SONCAP, CNAS, SGS,MH /T5002-9, MEP, CQC. |
| 2, Q: What's your Payment method? |
| A: T/T 30% deposit, balance will be paid by T/T before delivery |
| B: 100% L/C before start production |
| 3, Q: What logistics ways we can work for shipment? |
| A:We can ship fire trucks by various transportation tools |
| B:We will go by sea to all main continents such as South America, Middle East, Africa, Oceania and Europe etc. |
| C:Also we can ship trucks by road or railway to the neighborhood countries of China such as Russia, Mongolia, Kazakhstan, Uzbekistan etc. |
