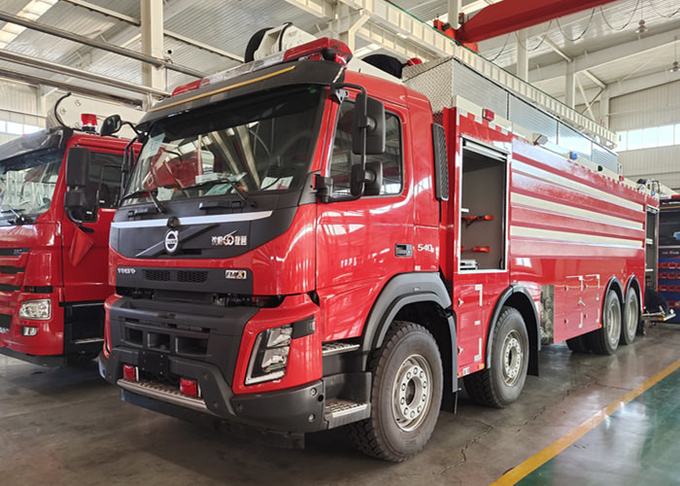

The Water tanker fire truck is mainly used in large and medium-sized cities in professional fire brigade for fire fighting against building, forests, as well as oil, chemical industry, fact-altitude water supply, mobile pumping stations.
Fire monitor
| Model | 7500-EXM |
| Position | Rear roof |
| Flow | 120L/s |
| Pressure | 1.0MPa |
| Range | water≥85m ,foam≥65m |
| Rotation angle | Level ≥270° Max. elevation angle ≥+45° Max. depression angle ≥-7° |
Liquid tank
| Capacity | Water: 12000kg Foam: 6000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Device | 2 ingate 1 overflow device 2 liquid level sensor 2 DN50 drain outlet with valve 4 filling pipe end Conform to rule GA39.4-92 |
Painting
Red paint: cab, body (shutter doors, except decorative strip)
White: according to customers requirements
Onboard document
- Vehicle operation and maintenance manual
- Chassis operating manual
- Chassis operation and maintenance manual
- Chassis quality warranty card
- Chassis certificate, vehicle certificate, 3C logo
- Engine code copy
- Chassis code copy
- Onboard equipment list
- Follow-up service card
- Hand-over list

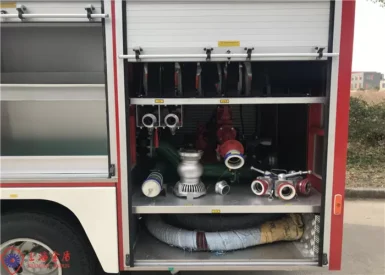

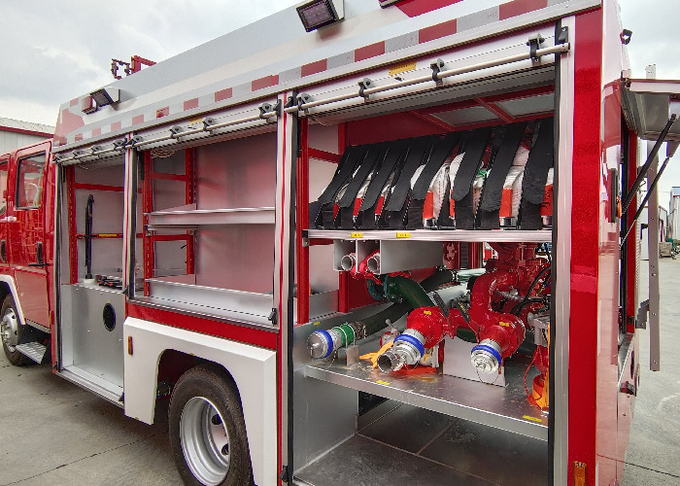

Onboard equipments
| No. | Item | QTY | NOTE |
| 1 | Suction hose 150×2000mm | 4 | Snap-type |
| 2 | Fire hose 65mm×20m | 6 | Snap-type |
| 3 | Fire hose 80mm×20m | 6 | Snap-type |
| 4 | Water filter | 1 | Snap-type |
| 5 | Delivery bead FFS80 | 1 | three-way wye Snap-type |
| 6 | Collecting breeching FJ150 | 1 | Snap-type |
| 7 | Increaser KJ65/80 | 2 | 80 turn 65 |
| 8 | Increaser | 4 | 80 male and 65 male turn |
| 9 | Suction coupling | 1 | DN150 snap-type to DN100 screw type |
| 10 | Suction wrench FS150 | 2 | |
| 11 | Hose bandage FP470 | 4 | |
| 12 | Hose strap FG600 | 2 | |
| 13 | Pillar hydrant wrench FB450 | 1 | |
| 14 | Underground hydrant wrench FBX800 | 1 | |
| 15 | Air foam gun PQ8 | 2 | |
| 16 | hydraulic monitor QZG3.5/7.5 | 2 | snap-type |
| 17 | Crowbar CT1 | 1 | |
| 18 | Spade 2# | 1 | |
| 19 | Fire axe GFJ817 | 1 | |
| 20 | Foam wrench | 2 | |
| 21 | Foam hose | 1 | DN50 |
Company Introduction:
Jindun as a member of China fire protection association, was certified by TUV system, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a " safe, livable and rich society. "

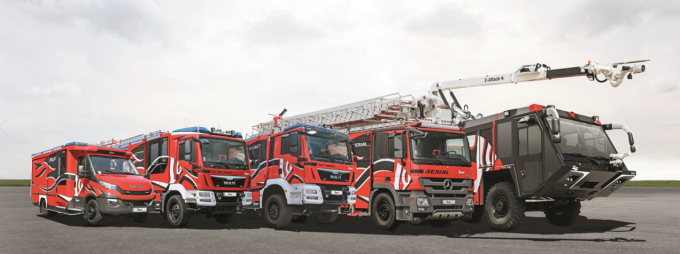

The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
