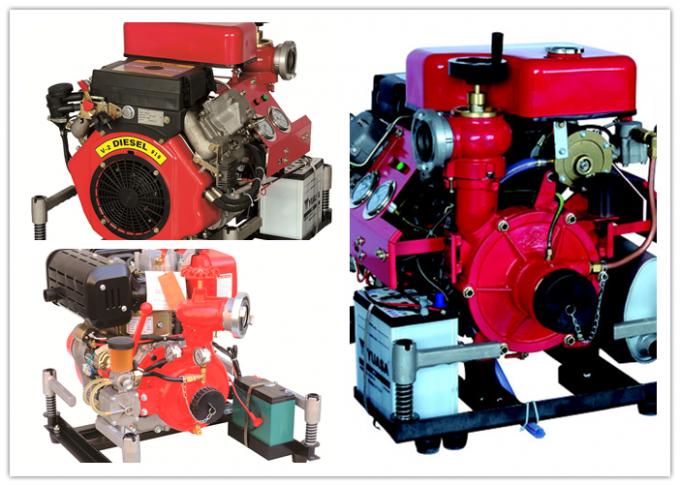

7M Maximum suction depth Low pressure middle flow Portable fire pump diesel engine 0.52Mpa
| Dimension | 590×560×570mm |
| weight | ≤75kg |
| Rated flow rate | 480L/min |
| lift | 65m |
| Rated pressure | 0.52Mpa |
| Inlet pipe diameter | φ65mm |
| Outlet pipe diameter | φ65mm |
| Water gun nozzle diameter | φ19mm |
| Connection mode | Threaded type |
| Maximum suction depth | 7m |
| Water diversion time | ≤20s |
| Startup mode | Hand / electric start |
| Engine model | 13HP,188FB |
| Water pump | Single stage |
JBC4.0/7(BJ9B-W)Low pressure middle flow Portable fire pump
| Dimension | 590×560×570mm |
| weight | ≤70kg |
| Rated flow rate | 480L/min |
| lift | 45m |
| Rated pressure | 0.4Mpa |
| Inlet pipe diameter | φ65mm |
| Outlet pipe diameter | φ65mm |
| Nozzle diameter of water gun | φ19mm |
| Connection mode | Threaded type |
| Maximum suction depth | 7m |
| Water diversion time | ≤20s |
| Startup mode | Hand / electric start |
| Engine model | 11HP,182FE |
| Water pump | Single stage |
