Multi Functional Emergency Rescue Vehicle with Operation and Maintenance Manual
Multi Functional Emergency Rescue Vehicle with Operation and Maintenance Manual - Image 2

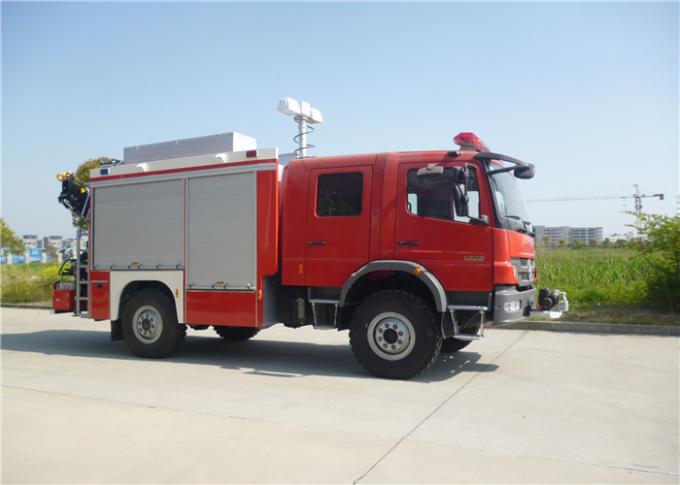

Multi Functional Emergency Rescue Vehicle with Operation and Maintenance Manual

Product Details:

  • Dimension
    8880??2500??3500 (mm)
  • Gross Weight
    14900 (kg)
  • Max. Speed
    100km/h
  • Equipment No.
    100pcs
  • Max. Power
    214kw
  • Seats
    6
  • Rescue Equipment
    Equipped
  • Product Name
    Emergency Rescue Vehicle With Operation And Maintenance Manual
  • Place of Origin
    shanghai China
  • Brand Name
    BENZ
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5150TXFJY100/B
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year
SKU: M2410 Category:

Vehicle

Dimension (L×W×H)8880×2500×3500 (mm)
Gross weight14900 (kg)
Complete vehicle shipping mass14450 (kg)
Rescue equipment quantity100pcs
Seat (inc. driver)2+4
Max. power214kw

Chassis

ManufacturerDaimler
ModelAXOR 1829
Drive type4×4
CabCrew cab
Wheelbase4500mm
Max. loading weight18000kg
Max. speed100km/h
Min. turning diameter<16.5m
Engine typeIn-line six-cylinder, inter-cooling, direct injection
ModelOM906LA.IV/3
Max. power214kw
Max. torque1120N.M
Emission standardChina IV
ClutchMonolithic, dry
Gearbox modelG131-9
TypeManual

Lift lighting system

ManufacturerZhejiang Senken
ModelSG55-4600F1
Lifting height5.5m
Above ground level≥6.6m
Control system working pressureDC24V
Lamps working pressure220V
Lamps power4×600w
Lamps horizontal rotating angle380°
Lamps vertical rotating angle330°

Painting

Red paint: cab, body (shutter doors, except decorative strip)

White paint: front and rear bumpers (steel parts), fenders, roof railing

Onboard document

  1. Vehicle operation and maintenance manual
  2. Chassis operating manual
  3. Chassis operation and maintenance manual
  4. Chassis quality warranty card
  5. Chassis certificate, vehicle certificate, 3C logo
  6. Engine code copy
  7. Chassis code copy
  8. Onboard equipment list
  9. Follow-up service card
  10. Hand-over list

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.
