| Suction inlet | 1×DN100 butterfly valve, electric and manual operation |
| Outside Suction inlet | 1×DN125 suction coupling with stainless steel butterfly valve and lid cover, snap- type |
| Outlet | 2×DN80 ordinary outlet with manual ball value, insertion-type |
| Pump outlet | 10mm stainless steel ball valve, manual |
| Outside liquid inlet | Use G1 1/2’’ manual ball valve and KY40 solenoglyphic tooth coupling |
Chassis
| Manufacturer | FIAT IVECO |
| Model | ML 100E22 |
| Driving | 4×2 |
| Min. turning radius | 5.2m |
| Min. ground clearance | Front 169mm, rear 172mm |
| Chassis Net weight | 10910Kg |
| Approach angle | 18° |
| Departure angle | 18° |
| Engine | IVECO TECTOR 6, F4AE3681B*S |
| Max. authorized total mass | 10000kg |
| Displacement | 5.88L |
| Max. torque | 680N•m/1200~2100r/min |
| Max. power | 160kW (217HP)/2700r/min |
| Fuel tank | 115L plastic fuel tank, 25L heating type urea tank, Recor oil-water separator with heating |
| Electric | Accumulator 2×12V/110Ah, electric generator 28V/70A/1690W |
| Gearbox | ZF 6S700 manual |
| Wheel base | 2790mm |
| Steering | Hydraulic power assisted |
| Front axle | IVECO 5833 |
| Rear axle | IVECO 450721 |
| Tyre | 6 x Michelin 2×9.5R17.5 XYZ |
| Brake | ABS system |
Equipment layout principles
1, According to combat programming and combat development design
equipment integration
2, According to human body engineering principle design all kinds of equipment frames.
3, According to using logic and frequency of use place equipment
4, 1-2 action can take any equipment standing on the ground or pedal

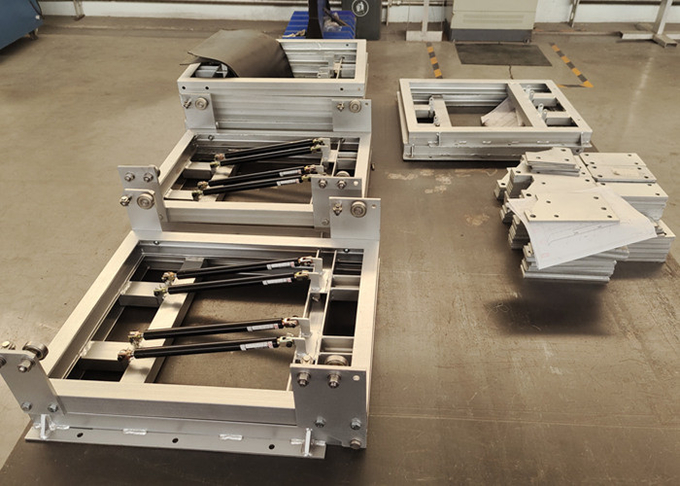

5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
