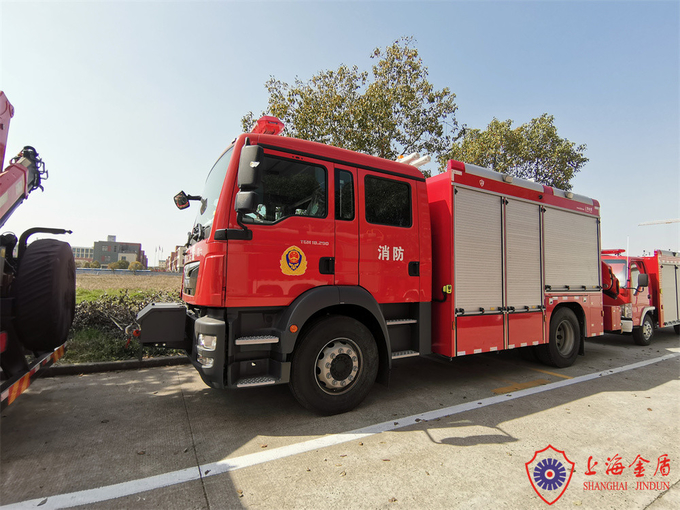

The JY100 chemical accidents rescue and salvage fire vehicle is adapted from MAN TGM 18.290 chassis. Equipped with US imported telescopic lifting lighting, HIAB truck crane and WARN traction winch. The vehicle structure and layout is reasonable, easy operation and maintaince, suitable for large and medium-sized city public security fire brigages, petrochemical enterprised and airport and other professional fire brigaded.
| Vehicle | Dimension (L×W×H) | 8655×2500×3500mm |
| Gross weight | 13065kg | |
| Complete vehicle shipping mass | 12615kg | |
| Rescue equipment quantity | 100pcs | |
| Seat (inc. driver) | 2+4 | |
| Chassis | Manufacturer | MAN |
| Model | TGM 18.290 | |
| Drive type | 4×2 | |
| Cab | Crew cab | |
| Wheelbase | 4425mm | |
| Max. total mass | 18000kg | |
| Max. speed | 96km/h | |
| Min. turning diameter | <15.6m | |
| Engine type | In-line six-cylinder, inter-cooling, high pressure common rail, electronic control | |
| Model | D0836LFL30 | |
| Max. power | 213kw | |
| Max. torque | 1150N.M | |
| Emission standard | China IV | |
| Gearbox model | ZF 9S-1310 OD Manual | |
| Traction system | Model | M12000 |
| Manufacturer | Warn | |
| Winch cable max. length | ≥38m | |
| Voltage | 24V | |
| Winch cable diameter | 9.5m | |
| Winch max. pull | 5440kg | |
| Position | Front bumper | |
| Truck crane | Model | HIAB 122B-2CLX |
| Manufacturer | Finland (HIAB) Company | |
| Lifting capacity | 11.5tm | |
| Max. rated lifting weight | 5700kg | |
| Rotary torque | 16.4kN.m | |
| Rotation angle | 410° (rear side of safe operating range 180 °) | |
| Working radius | 8.2m |
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
