M2453 IVECO 4×2 Foam Fire Truck with 2200 L Water
The M2453 is a 4×2 foam fire truck on the FIAT IVECO ML 100E22 chassis, a compact appliance for stations that answer vehicle fires and small hydrocarbon spills. The tank carries 2200L of water and 500L of foam, and the HALE AP32 pump delivers 32L/s at 1.0MPa. Gross weight is 7800 kg with a five seat cab in a 2+3 layout.
The IVECO TECTOR 6 engine, coded F4AE3681B*S, produces 160kW (217hp) at 2700r/min and 680N.M of torque between 1200 and 2100 r/min. Displacement is 5.88L, and the fuel system uses a 115L plastic tank with a 25L heated urea tank and a heated oil-water separator. Top speed is 110km/h, with approach and departure angles of 18 and 30 degrees.

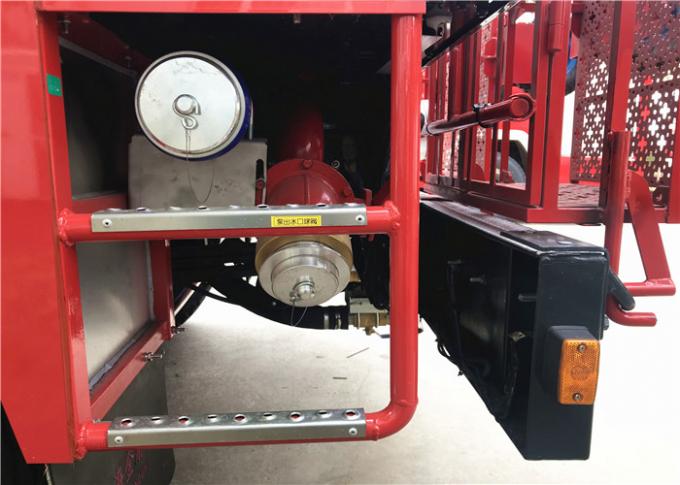

The chassis rides on a 2790mm wheelbase with a 5.2m minimum turning radius and ground clearance of 169mm at the front and 172mm at the rear. The liquid tank is high quality stainless steel 304. Equipment includes one 450mm manhole, an overflow device, a venting device, two liquid level sensors, two drain outlets with valves and two outside filling pipe ends.
The pump can draft to a depth of 7m, so the appliance is not tied to a hydrant position at the scene. Foam is drawn from the 500L tank through the proportioning circuit, which lets the crew switch between a wetting agent attack and plain water. Crews run it as a first out unit on vehicle fires and small spills, where a full size pumper would be excess capacity.
Full specifications
| Dimension (LxWxH) | 5270mmx2200mmx2980mm |
|---|---|
| Gross weight | 7800 (kg) |
| Wheel base | 2790mm |
| Water/ foam tank capacity | 2200L /500L |
| Max. engine power | 160kW(217hp)/2700r/min |
| Emission standard | China V |
| Max. speed | 110km/h |
| Seat (inc. driver) | 2+3 |
| Approach angle | 18° |
| Departure angle | 30° |
| Fire pump flow | 1.0MPa, 32L/s |
| Manufacturer | FIAT IVECO |
| Model | ML 100E22 |
| Driving | 4×2 |
| Min. turning radius | 5.2m |
| Min. ground clearance | Front 169mm, rear 172mm |
| Chassis Net weight | 10910Kg |
| Engine | IVECO TECTOR 6, F4AE3681B*S |
| Max. authorized total mass | 10000kg |
| Displacement | 5.88L |
| Max. torque | 680N•m/1200~2100r/min |
| Max. power | 160kW (217hp)/2700r/min |
| Fuel tank | 115L plastic fuel tank, 25L heating type urea tank, Recor oil-water separator with heating |
| Water flow | 1.0MPa 32L/s |
| Max. suction depth | 7m |
| Priming time | ≤35s |
| Capacity | Water : 2200L, foam: 500L |
| Material | High quality stainless steel 304 |
| Equipment | 1 manhole (450mm)1 overflow device1 venting device2 liquid level sensor2 drain outlet with valve2 outside filling pipe end1 inside filling pipe end |
Where it fits
Suits municipal stations covering dense streets and industrial sites with tight access. The 2200L water and 500L foam load covers vehicle fires and small chemical spills on first response, without committing a full size pumper.
