Water Tanker Firefighting Vehicle
| Dimension (L×W×H) | 9720×2500×3700 (mm) |
| Gross weight | 28000 (kg) |
| Complete vehicle shipping mass | 15350 (kg) |
| Seat (inc. driver) | 2 |
| Max. power | 265kw |
Chassis for water tanker firefighting truck
| Manufacturer | Daimler |
| Model | Actros3336 |
| Drive type | 6×4 |
| Cab | Flattop Four door lengthen cab |
| Wheelbase | 4500+1350mm |
| Max. speed | 95km/h |
| Min. turning diameter | ≤21m |
| Approach angle | 17° |
| Departure angle | 13° |
| Engine type | In-line six-cylinder, turbo inter-cooling, electronic unit pump diesel engine |
| Model | OM501LA.IV/2 |
| Max. torque | 1850N.M |
| Emission standard | China IV/euro IV |
| Clutch | Monolithic, Dry |
| Gearbox | Manual, 16 forward gear |
Liquid tanker
| Capacity | Water: 12000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Device | 1 ingate |
Side girder for water tanker fire truck
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.

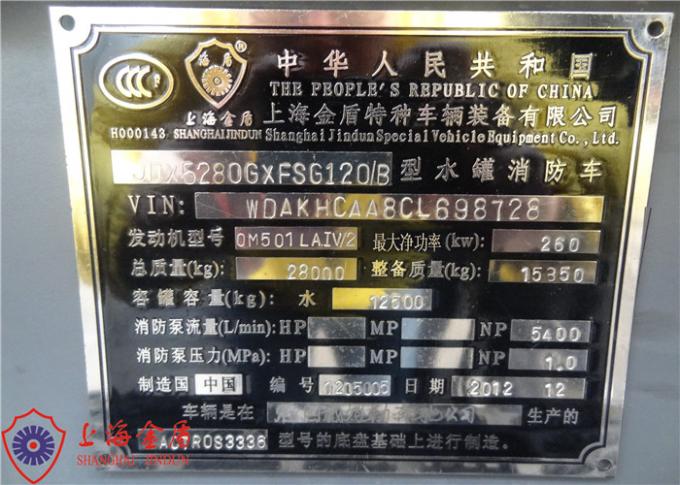

Fire Truck nameplate
FAQ
| 1, Q: Why should we choose you ? |
| A: We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting. |
| B: We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur |
| C: We have our own R&D team, production workshop, QC management team, international marketing team and after service team. |
| D: We will provide the most professional and the best service on every business discussion and operation procedure. |
| E: We can provide special design for different specification requirement according to different orders or tender documents. |
| G: We have jointed ventures with Morita for 4 years, so the technology, design and quality are same with Morita. |
| H: We have collaboration with various top enterprises of fire protection sector, Such as Darley, Rosenbauer, HALE, AKRON, Ekhart, etc. |
| I: Our Certifications: ISO, TUV, CCCF, SONCAP, CNAS, SGS,MH /T5002-9, MEP, CQC. |
| 2, Q: What's your Payment method? |
| A: T/T 30% deposit, balance will be paid by T/T before delivery |
| B: 100% L/C before start production |
| 3, Q: What logistics ways we can work for shipment? |
| A:We can ship fire trucks by various transportation tools |
| B:We will go by sea to all main continents such as South America, Middle East, Africa, Oceania and Europe etc. |
| C:Also we can ship trucks by road or railway to the neighborhood countries of China such as Russia, Mongolia, Kazakhstan, Uzbekistan etc. |
| 4, Q: What's the delivery time? |
| A: 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model. |
| B: ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit. |
| C: European brand chassis 9 months upon receipt of advance deposit. |
| 5, Q: Can you provide the ISO9001 certificate or some others related? |
| A: Yes. We have been exporting fire trucks for years. Rich experience for exporting to different countries like African market, Russia and South America. This helps us to know the importance of handling with various certificates. |
