100pcs Rescue equipment quantity Chemical accidents rescue and salvage fire vehicle 4x2drive

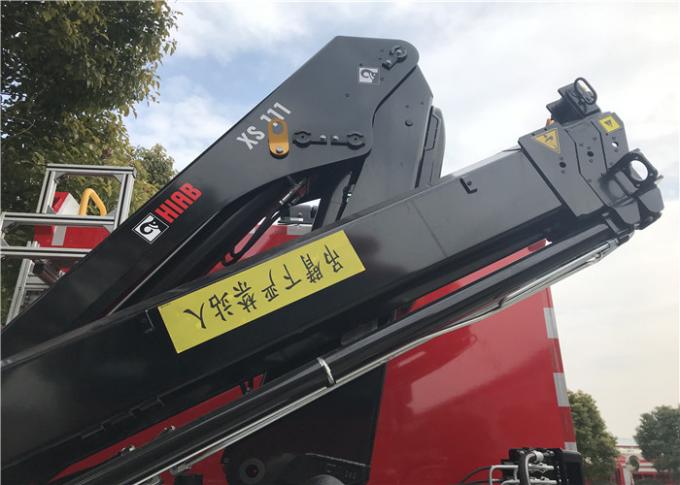

Truck crane
| Model | HIAB 122B-2CLX |
| Manufacturer | Finland (HIAB) Company |
| Lifting capacity | 11.5tm |
| Max. rated lifting weight | 5700kg |
| Rotary torque | 16.4kN.m |
| Rotation angle | 410° (rear side of safe operating range 180 °) |
| Working radius | 8.2m |
Side girder
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
Equipment tank
| Manufacturer | SHANGHAI JINDUN |
| Material | Q235A high quality steel combine aluminium alloy sections |
| Structure | Welding, lap structure, skin, floor, interior panels use rust-proof aluminum plane, pedal tread surface, car roof using aluminum patterns. |
| Equipment compartment door | the light quality aluminum alloy, with shutter doors, lightweight and reliable. |
| Internal structure | the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level. |
Chassis
| Manufacturer | MAN |
| Model | TGM 18.290 |
| Drive type | 4×2 |
| Cab | Crew cab |
| Wheelbase | 4425mm |
| Max. total mass | 18000kg |
| Max. speed | 96km/h |
| Min. turning diameter | <15.6m |
| Engine type | In-line six-cylinder, inter-cooling, high pressure common rail, electronic control |
| Model | D0836LFL30 |
| Max. power | 213kw |
| Max. torque | 1150N.M |
| Emission standard | China IV |
| Gearbox model | ZF 9S-1310 OD Manual |
Side girder
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
Equipment tank
| Manufacturer | SHANGHAI JINDUN |
| Material | Q235A high quality steel combine aluminium alloy sections |
| Structure | Welding, lap structure, skin, floor, interior panels use rust-proof aluminum plane, pedal tread surface, car roof using aluminum patterns. |
| Equipment compartment door | the light quality aluminum alloy, with shutter doors, lightweight and reliable. |
| Internal structure | the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level. |
