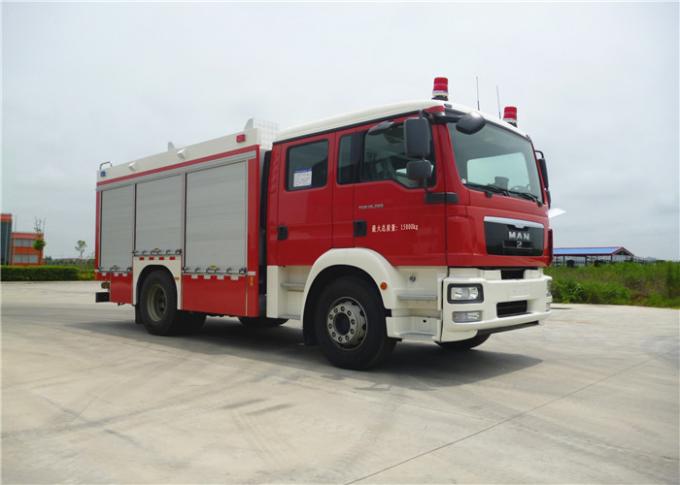

MAN chassis 4×2 chemcial accidents rescue and salvage fire vehicle 6 seats
Equipment layout principles
1, According to combat programming and combat development design
equipment integration
2, According to human body engineering principle design all kinds of equipment frames.
3, According to using logic and frequency of use place equipment
4, 1-2 action can take any equipment standing on the ground or pedal
5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
Vehicle
| Dimension (L×W×H) | 8960×2475×3400mm |
| Gross weight | 11610kg |
| Complete vehicle shipping mass | 11160kg |
| Rescue equipment quantity | 100pcs |
| Seat (inc. driver) | 2+4 |
| Max. power | 214kw |
Chassis
| Manufacturer | Daimler |
| Model | AXOR 1829 |
| Drive type | 4×2 |
| Cab | Crew cab |
| Type | Reversible |
| Wheelbase | 5100mm |
| Approach angle/departure angle | 15°/12° |
| Min. turning diameter | <19m |
| Engine type | In-line arrangement water-cooling turbocharged inter-cooled CI engine |
| Model | OM906LA.IV/3 |
| Max. power | 214kw |
| Max. torque | 1120N.M |
| Emission standard | China IV |
| Clutch | Monolithic, dry |
| Gearbox model | G131-9 |
| Type | Manual |
